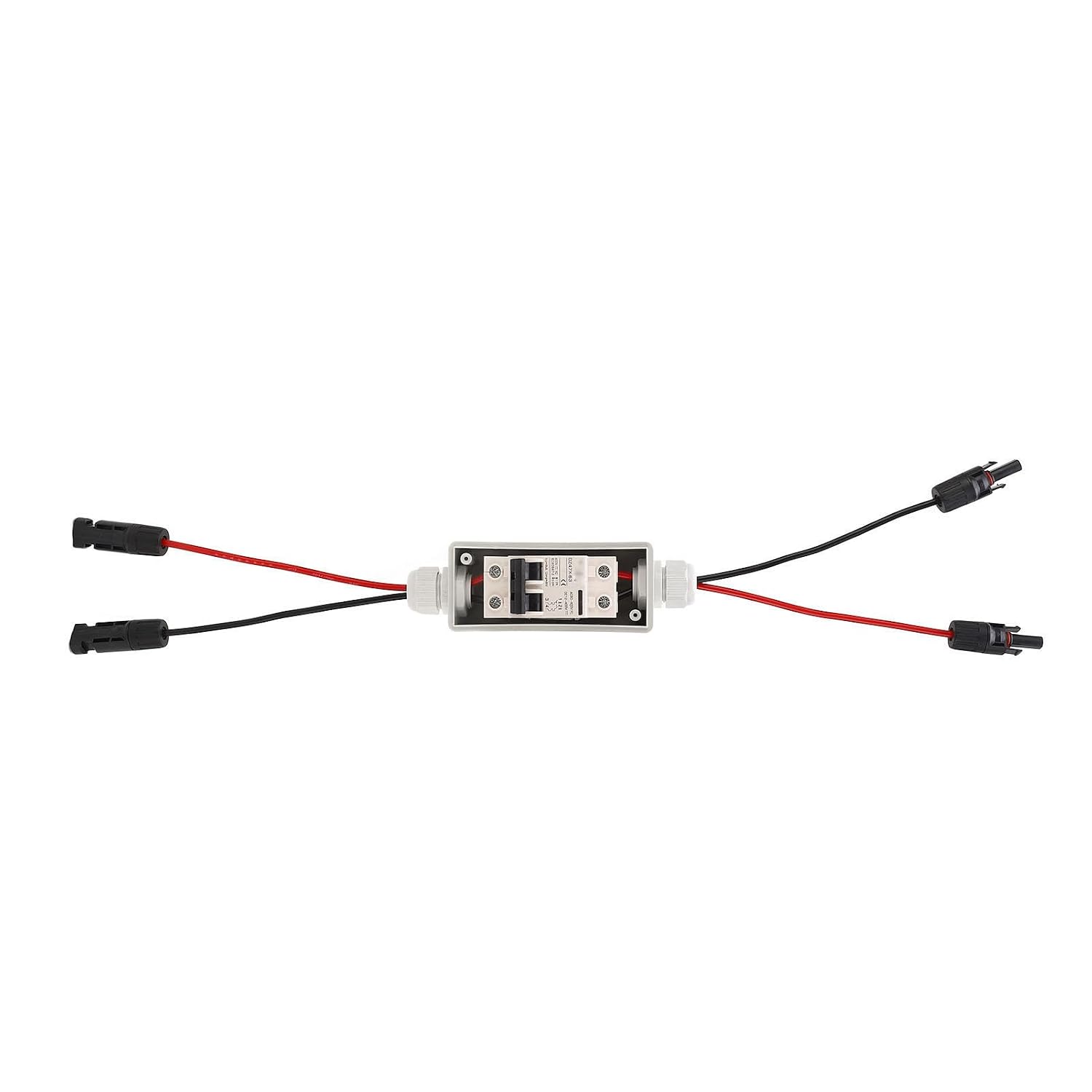

Outdoor Miniature Circuit Breaker Boxes, Miniature Circuit Breakers with Din, DC 12-400V AC 90~400V 16A IP65 Miniature Circuit Breakers for Solar Panels in Distribution Boxes
Product details
| Management number | 246967008 | Release Date | 2026/08/16 | List Price | US$14.73 | Model Number | 246967008 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1. Circuit Breaker - With rated voltage of DC 12-400V AC 90-400V and rated current of 16A, this circuit breaker also has a interrupt capacity of 4000A. 2. A BOX - IP65 box ensures greater work safety for outdoor use, while the transparent cover allows easier control. 3. Wide usage: Widely applicable to the network of photovoltaic solar panels, solar off-grid, solar power generation, etc. 4. : Able to give timely response in high current detection, the switch can quickly disconnect the circuit for safety. 5. EASY TO INSTALL - Designed to have compact size and light weight, the installation of this MCB is very convenient to complete. Specifications: Item Type: Mini Circuit Breaker Model No.: DZ47X-63 Material: Pa66. grade: IP65 Rated current: 16A Rated voltage: DC 12-400V, AC 90-400VIcu: 4kA Uimp: 4kV Trigger Curve: B (3-5 I/In) Electrical life: 4000 times Mechanical life: 10,000 times Standard: IEC60947-2 Working temperature: -30 °C to +70 °C. How to use: 1. Open the packaging and take out the product.2. Install the support wires and accessories in the electrical box. Connect the solar panel to use it. Package includes: 1 x Mini Circuit Breaker Box (2 Top & Bottom) 1 x electrical tape. 2 x Cover 2 x connector2 x rubber ring. 2 x ring. 7 x Screws. 4 x Wall plug. 4 x Connection Terminal 4 x Photovoltaic Line
- 1 x box. This product is housed in a material with an IP65 rating to ensure safety when working outdoors. It also looks better through the transparent box.
- Dual power supply, protection DC 12-400V - and pole + or AC 90~400V protects the L and N poles, providing you with a wide application.
- Good protection. With overvoltage, overload and discharge protection functions, this product provides timely response to detect high current and disconnect in time.
- Wide usage, applicable to the grid-connected of photovoltaic solar panels, off-grid solar systems, solar power generation systems, etc., and is suitable for home, recreational vehicles, etc.
- Easy to install, with MC solar connectors for installation, plug and play and safer.
| ASIN | B0CK2J6G26 |
|---|---|
| Model | Sorandy92gc3ydnxq |
| Voltage | 400 volts |
| Brand Name | Sorandy |
| Unit Count | 1 Count |
| Part Number | Sorandy92gc3ydnxq |
| Manufacturer | Sorandy |
| Mounting Type | Wall Mount |
| Current Rating | 16 A |
| Item Type Name | Terminal Blocks |
| Number of Items | 1 |
| Number of Poles | 2 |
| Circuit Breaker Type | Standard |
